5000S Sedan L5-2226cc 2.22L SOHC (KZ) (1985)
-

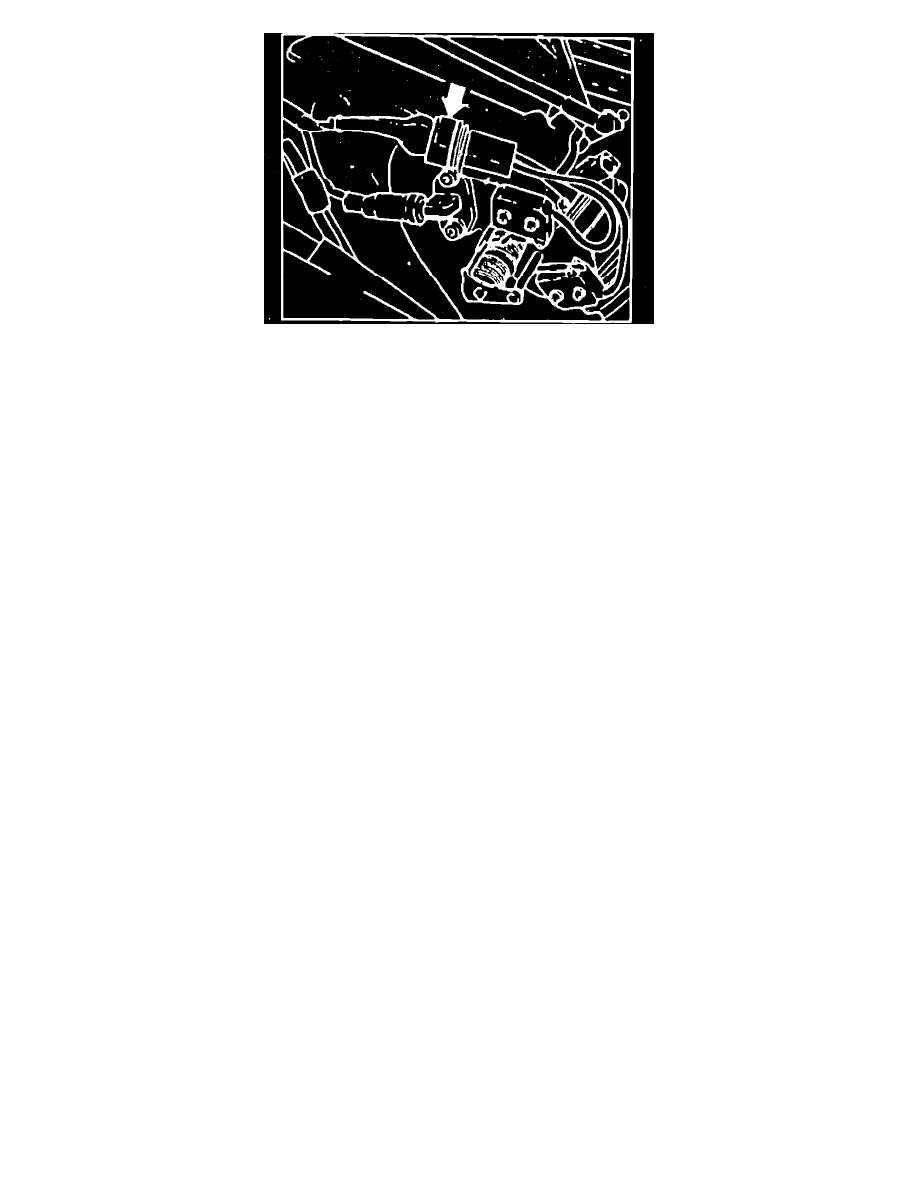

loosen upper left bolt from throttle valve housing
-
attach pointer and tighten bolt
-
attach protractor 3084 to secondary throttle valve shaft (remove nut if necessary)
-
disconnect switch wire plug and connect ohmmeter across open connector terminals
-
open secondary throttle plate fully and zero protractor
-
close throttle valve approx. 30°
-
open throttle slowly
^
ohmmeter must read 0 ohms at 12 to 8° before full throttle
If NO
-
adjust full throttle switch at mounting screws
NOTE: Ohmmeter must indicate 0 ohms at full throttle position
