5000S Sedan L5-2226cc 2.22L SOHC (KZ) (1985)
/Page-1313001.png)
Cold Start Injector: Testing and Inspection
Leak Test

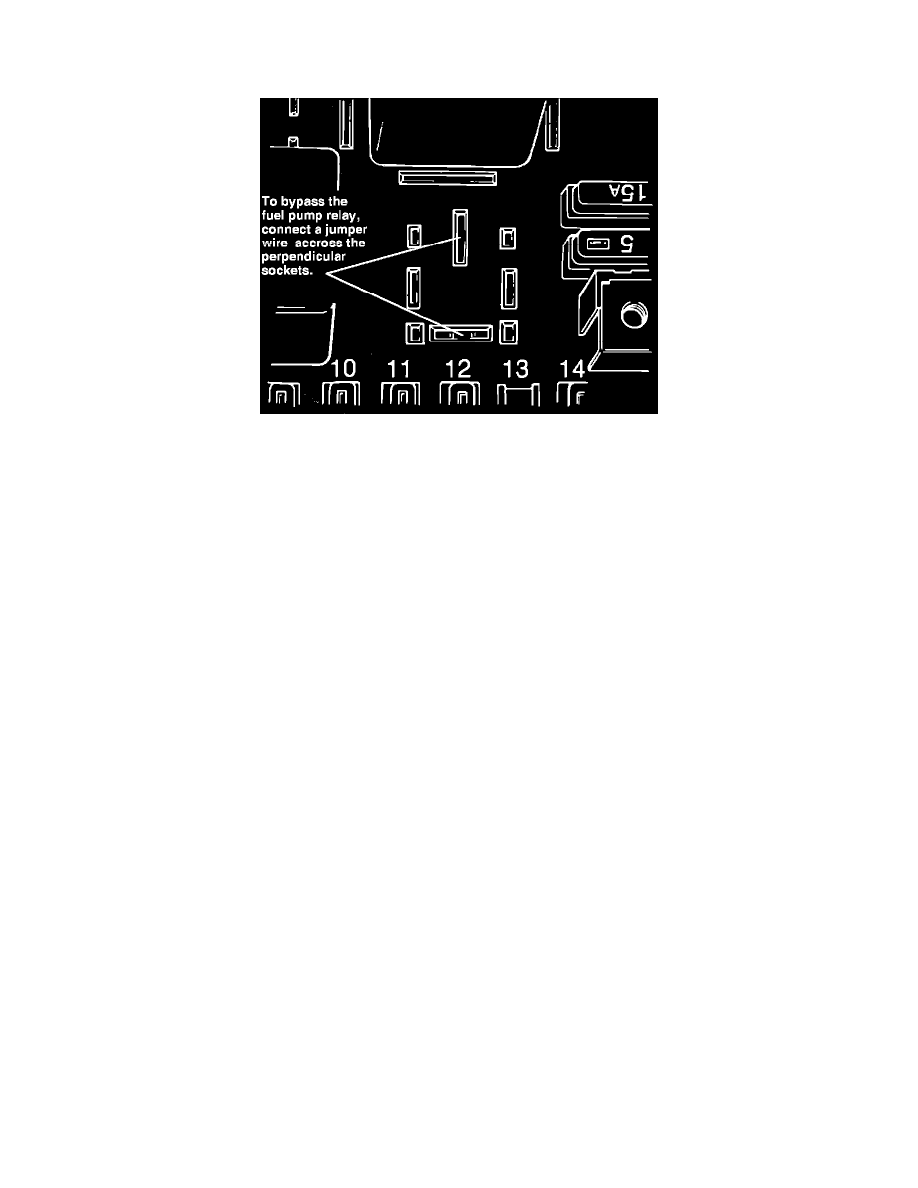

Fig. 24 Fuel Pump Bypass Terminal I.D.
1.
Remove fuel pump relay and connect a jumper wire between terminals 13 and 14 to presurize the fuel system, Fig. 24.
2.
Dry the end of the cold start injector with compressed air, or a clean rag.
3.
No fuel should leak from the injector for at least one minute.
4.
If the injector leaks, replace it.
