90 Quattro Sport V6-2.8L (AFC) (1995)
-
Install articulated bushing into release lever -2-.
-
Attach operating rod -3- to articulated bushing.
-
Insert securing clip -4- into release lever of door lock.
-
Attach operating rod to securing clip -4-.
^ Adjust operating rod so that it is not loose
^ Do not put door lock release lever under strain. Max. clearance: 1 mm (0.04 in.).
-
Move sleeve upward on securing clip -4-.

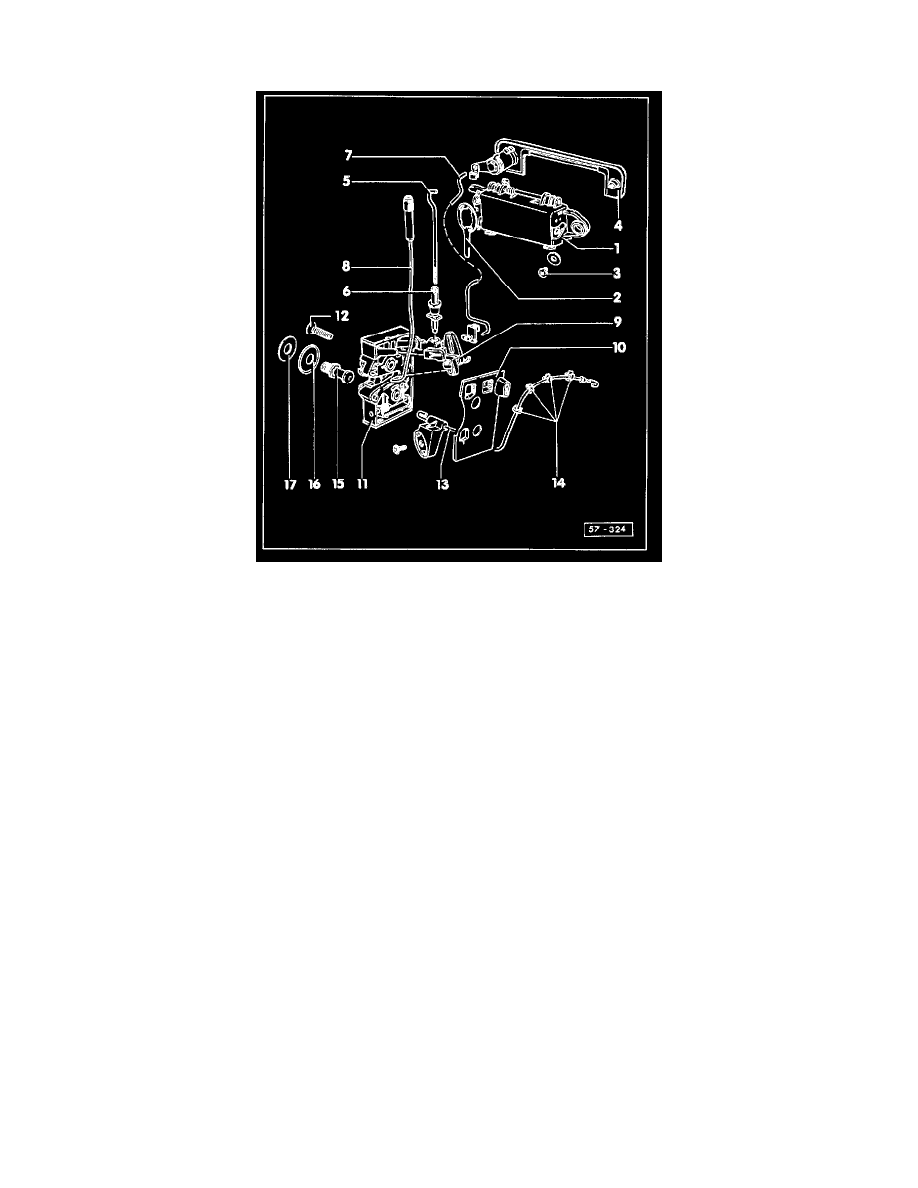

Fig. 3 - Replacing Bowden cable for internal door mechanism
-
Remove door trim panel. See: Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service and Repair
-
Unclip Bowden cable, pull core of cable and hold door lock in position.
-
Remove Bowden cable.
Note direction cable is hooked into clips.
