A1

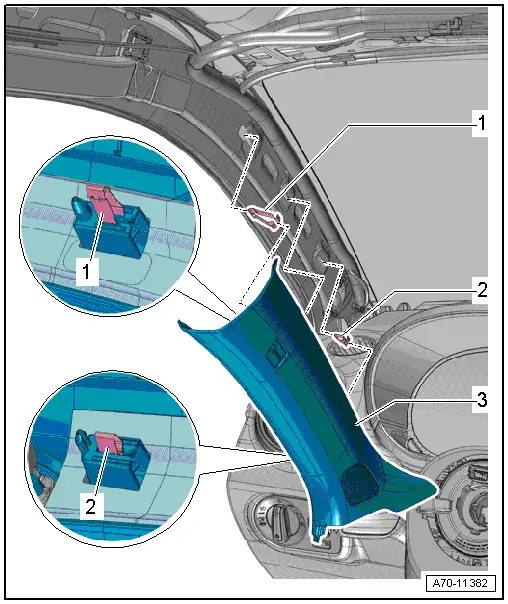

| Exploded view of upper A-pillar trim |
| 1 - | Retaining clip |
| q | With catch |
| q | Insert in trim |
| q | Replace damaged or misshapen retaining clips |
| 2 - | Retaining clip |
| q | 2x |
| q | Insert in trim |
| q | Remove any retaining clips left in body mounting points and insert in trim for installation |
| q | Replace damaged or misshapen retaining clips |
| 3 - | Upper A-pillar trim |
| q | Removing and installing → Chapter |
