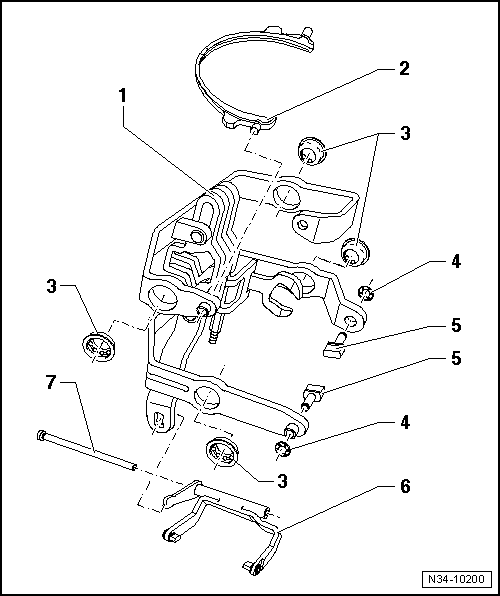

| Exploded view - selector forks |
Note| The selector fork cluster → Item does not have to be dismantled in order to remove and install detent segments, lock washers and angular contact ball bearings. |
| 1 - | Selector fork cluster with selector plates |
| 2 - | 3rd/4th gear detent segment |
| q | Identification → Fig. |
| q | Detent segment should turn freely after installation. |
| q | Separate detent segments are fitted in some gearboxes → Fig. |
| q | Identification → Fig. |
| 3 - | Angular contact ball bearing |
| q | 4x |
| q | Removing → Fig. |
| q | Pressing inner race into outer race → Fig. |
| q | Installing → Fig. |
| 4 - | Lock washer |
| q | Renew |
| q | Removing → Fig. |
| q | Installing → Fig. |
| 5 - | 1st/2nd gear detent segment |
| q | Identification → Fig. |
| q | The segment must rotate freely after installing the lock washer |
| q | Selector fork with detent segment → Fig. |
| 6 - | 5th gear selector fork with detent segments |
| q | Detent segments are inseparably joined with selector fork |
| q | Identification → Fig. |
| 7 - | Pivot pin |
| q | for 5th gear selector fork |
