Removing and installing washer fluid reservoir > < Removing and installing washer jet

A1

Adjusting washer jet
Adjusting washer jet
Special tools and workshop equipment required
t  Adjusting tool for washer jet -T40187- fitted with needle -3125/5A-

Procedure
  WARNING
Risk of injury.
t  When the adjusting tool for washer jet -T40187- is not used, make sure both sides are always covered and secured with the covers -3- and -4-.
t  If one side is not secured with the cover, injuries may be caused by the needle -3125/5A--item 1- or the adjusting pin -2-.
t  When opening one of the sides, always make sure the opposite side does not point towards your hand.
  A92-10197

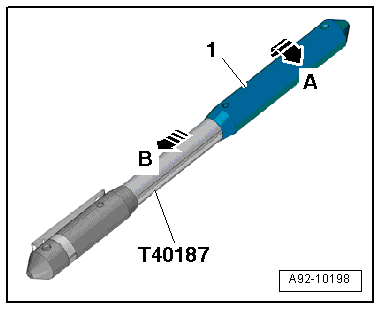

–  Release long cover -1- on adjusting tool for washer jet -T40187--arrow A- and slide towards rear -arrow B-.
  A92-10198
–  Adjust washer jets using adjusting tool for washer jet -T40187- so that water jets spray rear window at points indicated.
l  Dimension -a- = 125 mm
l  Dimension -b- = 10 mm
l  Dimension -c- = 230 mm
  A92-10133
