Removing and installing rear door trim

1 -

Door trim

t  Removing –  Vehicles with window crank: Remove window crank → Chapter –  Use flat screwdriver to prise out treble loudspeaker trim -2-. –  Unscrew bolt -3-. –  Screw bolts -4- (2x) out of door trim -1-. –  Unfasten door trim -1- at clips -7- (7x) from door shell. –  Lift door trim -1- out of retaining element -6-. –  Disengage Bowden cable for interior door handle → Fig.

–  Unplug connector to treble loudspeaker → Fig. –  Unplug connector at window lifter control unit → Fig. t  Installing –  Replace damaged clips -7- → Fig. –  Attach wiring harnesses. –  Engage Bowden cable. –  Engage door trim -1- at retaining element -6-. –  Clip on door trim -1-. –  Screw on door trim -1-.

2 -	Treble loudspeaker trim

3 -

Bolt

q	Tightening torque 2 Nm

4 -	Bolts (2x)

q	Tightening torque 2 Nm

5 -	Door shell

6 -	Retaining element

7 -	Clips (7x)

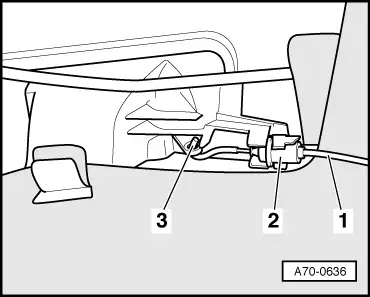

Disengaging Bowden cable –  Pull Bowden cable -1- out of guide -2- and disengage.   Note On installation, make sure hook -3- is facing upwards.

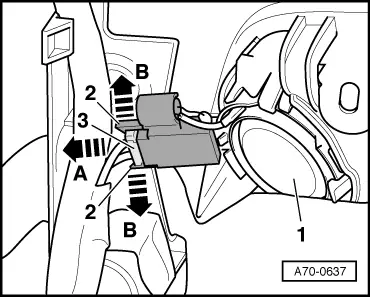

Treble loudspeaker connector –  Carefully press fasteners -2- in direction of arrow -B-. –  Unplug connector -3- in direction of arrow -A- from treble loudspeaker -1-.

Connector at window lifter control unit –  Press retainer tab -2- and unplug connector -1- in direction of arrow.

Door trim securing clip –  Press retainer tab -2- and pull out clip -1- in direction of arrow.
