Additionally required information

• ◆ Workshop Manual Audi A2 2001 ä Running Gear, Self-diagnosis for ESP

Removing

• ‒ Note radio code on vehicles with coded radio; if necessary request it.
• ‒ Disconnect battery.
• ‒ Remove coolant system expansion tank and lay to one side, do not open coolant system.

• ‒ Detach vacuum hose from brake servo.
• ‒ → Disconnect the brake pressure sender -2-
• ‒ Unplug connector for brake fluid reservoir -1-.

• ‒ → Disconnect the brake pressure sender -2-
• ‒ Unplug wire connector for solenoid -1-.
• ‒ Protect the engine compartment against escaping brake fluid using plenty of cloths.
• ‒ Unscrew lines to brake master cylinder.
• ‒ Removing driver's storage compartment.

=> General Body Assembly, Interior; Repair group 68

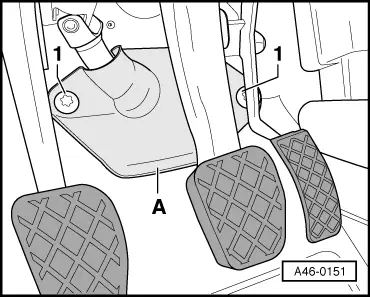

• ‒ → Remove bolts -1-.
• ‒ Remove cover -A-.

• ‒ → Fold the cover -A- downwards.
• ‒ Adjusting, removing and installing brake light switch
• ‒ Detach brake pedal from brake servo .
• ‒ Unscrew servo unit.
• ‒ Thread out brake servo with brake master cylinder to front and remove.

Installing

Installation is in reverse order.

• ‒ Adjusting, removing and installing brake light switch => Page 45-22
• ‒ Bleed the brake system after installation => Page 47-21.
