Operating manual release for selector mechanism from position "P” (vehicles from 11.2009 onwards) > < Removing and installing selector lever display illumination bulb L101 (vehicles with selector lever boot, up to 11.2009)

A3 Mk2

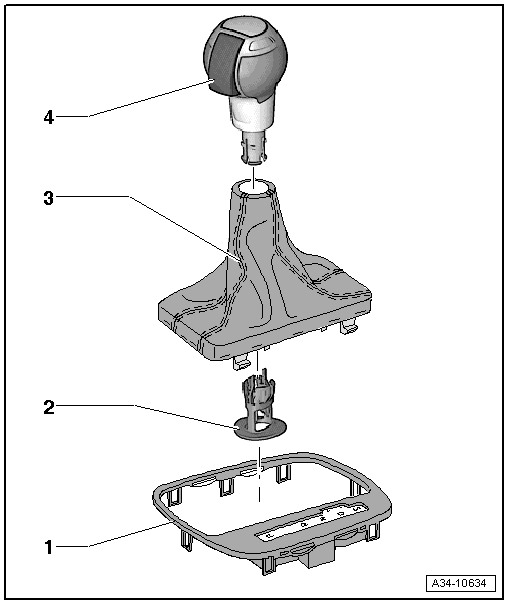

Exploded view - selector lever handle, selector lever display illumination bulbL101 (vehicles from 11.2009 onwards)

Exploded view - selector lever handle, selector lever display illumination bulb -L101- (vehicles from 11.2009 onwards)
1 - Trim frame with selector lever display illumination bulb -L101-
q   → Chapter „Removing and installing selector lever display illumination bulb -L101- (vehicles with selector lever boot, up to 11.2009)“
2 - Guide
3 - Selector lever boot
q   → Chapter „Separating selector lever boot from selector lever handle (vehicles from 11.2009 onwards)“
4 - Selector lever handle
q   → Chapter „Removing and installing selector lever handle (vehicles from 11.2009 onwards)“
q   → Chapter „Moving interlock button on selector lever handle into installation position (vehicles from 11.2009 onwards)“
