4-cylinder TDI engine (2.0 ltr. 4-valve common rail - generation II), mechanics
Engine assy,cylinder block,crankcase
Separating engine from manual gearbox
Separating engine from manual gearbox
Separating engine from manual gearbox
Special tools and workshop equipment required
t

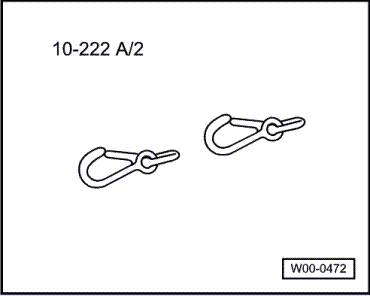

Hooks -10 - 222 A /2-
t

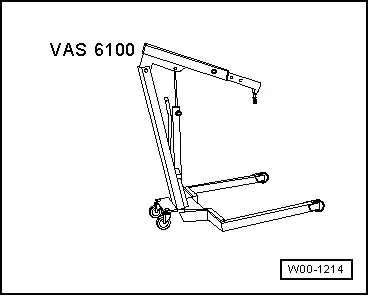

Workshop hoist -VAS 6100-
t

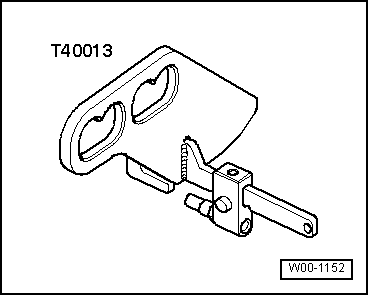

Lifting tackle -T40013-
Procedure
l
Engine/gearbox assembly removed and attached to engine bracket -T10012-.
–

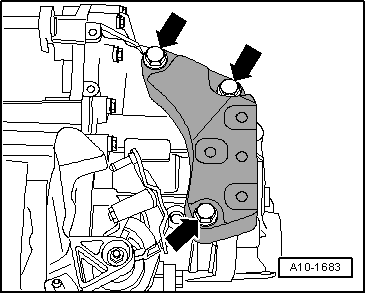

Unscrew bolts
-arrows-
and detach gearbox support.
–

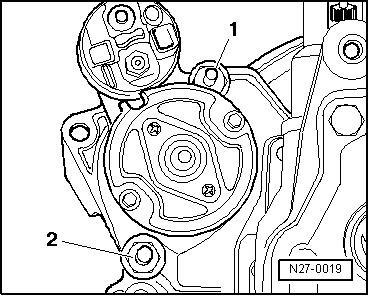

Unscrew bolts
-1-
and
-2-
and remove starter from gearbox.
Vehicles with four-wheel drive:
–

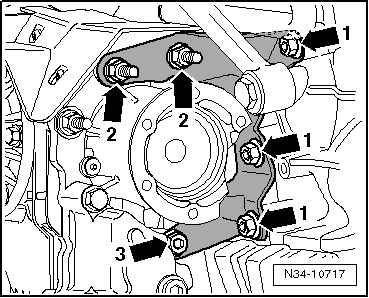

Remove bolts
-arrows 2, 3-
securing bracket for bevel box.
Note
Disregard
-arrows 1-
.
All vehicles (continued):
–
Attach lifting tackle -T40013- to gearbox and close lock.
–
Attach workshop hoist -VAS 6100- with hooks -10 - 222 A /2- to the lifting tackle.
–

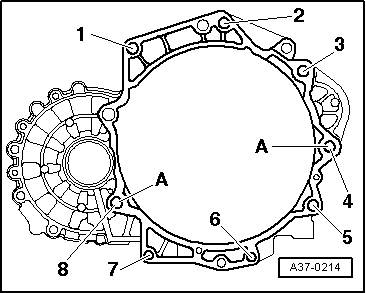

Remove bolts
-1, 2, 5, 6, 7, 8-
securing gearbox to engine.
Note
Disregard
-items 3 and 4-
and
-A-
.
–
Detach gearbox from engine.
