Checking oil pressure > < Removing and installing oil pressure switch F22/valve for oil pressure controlN428

A3 Mk2

Removing and installing oil pressure switch for reduced oil pressureF378
Removing and installing oil pressure switch for reduced oil pressure -F378-

Removing

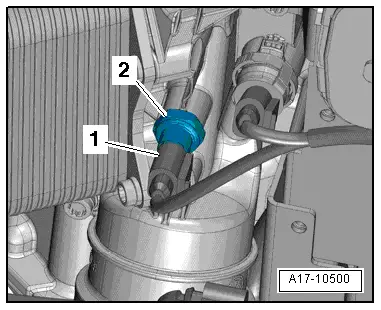

–  Unplug electrical connector -1-.
–  Unscrew oil pressure switch for reduced oil pressure -F378--item 2-.
Installing
Install in reverse order.
l  Tightening torque → Chapter „Oil filter bracket and engine oil cooler - exploded view“
  A17-10500

Checking oil pressure > < Removing and installing oil pressure switch F22/valve for oil pressure controlN428
