Removing and installing seat adjustment switch
Removing and installing seat adjustment switch
Removing and installing seat adjustment switch
–
Remove seat
→ Chapter
.
–
Remove seat side trim (sill side)
→ Chapter
.
–

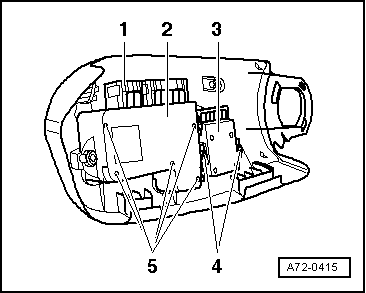

Unscrew bolts
-5-
(5x). Tightening torque: 1.5 Nm
–
Detach seat adjustment switch
-2-
.
–
Take out printed circuit board with connectors
-1-
.
