Removing and installing metal glow plugs
Removing and installing metal glow plugs
Special tools and workshop equipment required

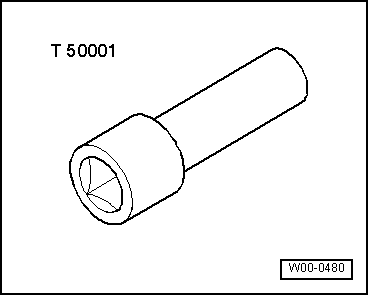

t  Socket -T50001-
Removing
–  Switch off ignition.
–  Remove cylinder head cover → Rep. Gr.15.
–  Detach electrical connectors at glow plugs.
  W00-0480

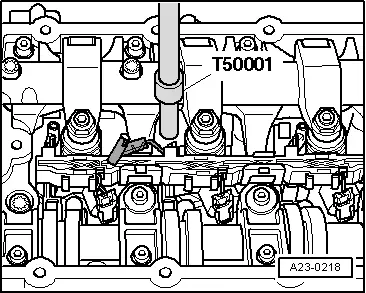

–  Remove glow plugs using socket -T50001-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install cylinder head cover → Rep. Gr.15.
Tightening torque
  A23-0218
ComponentNm
Metal glow plug in cylinder head8 … 11
