• Gearbox housing
• Input shaft
• ◆ Dismantling and assembling
• ◆ Adjusting
• ◆ Servicing input shaft bearings => Page 35-1
• Selector rod with selector fork for 3rd and 4th gear
• ◆ Dismantling and assembling => Page 34-113
• ◆ Replacing mounting bushes => Page 34-113

• Left stop bolt
  - 40 Nm
• Sealing ring
• Relay shaft
• ◆ Installation position => Page 34-115
• Sealing ring
• Right stop bolt
  - 40 Nm
• Selector shaft
• ◆ Installation position => Page 34-117
• ◆ Replacing selector shaft sealing ring => Page 34-117
• Detent segment
• ◆ Installation position => Page 34-115

• TORX-screw - 25 Nm
• ◆ With shoulder to secure the detent segment spring
• Selector rod with selector fork for 1st/2nd/5th and reverse gear
• ◆ Dismantling and assembling => Page 34-113
• ◆ Removing and installing ball sleeves => Fig.34-118
• Drive pinion with hollow shaft
• ◆ Dismantling and assembling => Page 35-22
• ◆ Adjusting
• ◆ Servicing drive pinion and hollow shaft bearings => Page 35-22
• Gearbox cover
• ◆ Removing and installing oil collector => Fig.1

• TORX-screw - 22 Nm
• Spring
• Cover with Torsen differential
• ◆ Removing and installing with gearbox installed => Page 34-71
• ◆ Removing and installing Torsen differential from cover => Page 34-102
• ◆ Servicing cover => Page 34-102
• TORX-screw - 22 Nm

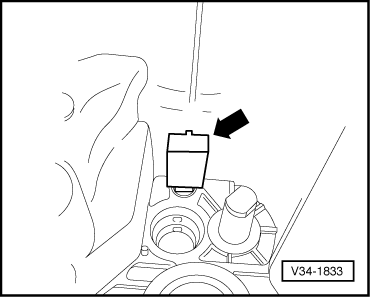

→ Fig.1    Removing and installing oil collector

Removing

• ‒ Turn the oil collector -arrow- and then pull out.

Installing

• ‒ Push oil collector into gearbox cover until it snaps in place.
• ‒ Installation position: oil collector faces upwards in gearbox cover
