• ‒ Work on clutch involves removing gearbox .

• Dual-mass flywheel
• ◆ If provided, white coloured dot -A- at dual-mass flywheel must be opposite white coloured dot -B- of pressure plate
• ◆ Make sure centring pins are a tight fit
• ◆ Contact surface for clutch lining must be free from grooves, oil and grease
• ◆ Removing and installing:

=> Engine, Mechanics; Repair Group 13

• Bolt
• ◆ Tightening torque with 22.5 mm long bolt: 60 Nm + further 90° turn
• ◆ Tightening torque with 43.5 mm long bolt: 60 Nm + further 180° turn
• ◆ Always replace

=> Engine, Mechanics; Repair Group 13

• Clutch plate
• ◆ Installation position: Dampers (coil springs) or "gearbox end" label facing pressure plate or gearbox
• ◆ Centring => Fig.1
• ◆ Do not grease
• ◆ Clutch plate diameter => Page 00-3 onwards

• Pressure plate
• ◆ Removing and installing => Fig.1
• ◆ If provided, white coloured dot -A- at dual-mass flywheel must be opposite white coloured dot -B- of pressure plate
• ◆ Checking ends of diaphragm spring => Fig.2
• ◆ Checking spring connection and riveted joints => Fig.3
• Bolt, 25 Nm
• ◆ Tighten gradually and diagonally
• Needle bearing
• ◆ Driving out and fitting

=> Engine, Mechanics; Repair Group 13

→ Fig.1    Removing and installing clutch

• ‒ Installation position of clutch plate: Dampers (coil springs) or "gearbox end" label must face pressure plate or gearbox.
• ‒ On installation, make sure white coloured dot -A- of dual-mass flywheel is aligned with white coloured dot -B- of pressure plate.
• ‒ Slacken off/tighten bolts gradually and in diagonal sequence (25 Nm).

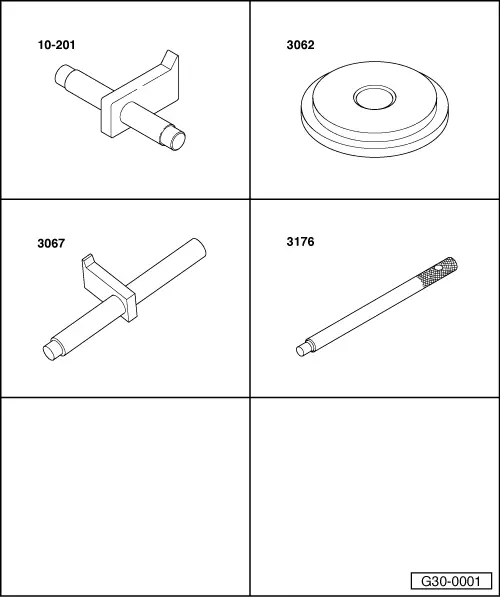

• ‒ Re-position counterhold 10-201 when removing.
• ‒ Use guide mandrel 3176 to centre clutch plate.

Notes:

• ◆ Pressure plate contact surface and clutch plate lining must make full contact with flywheel. Only then are bolts to be fitted.
• ◆ Tighten bolts evenly, diagonally and in small steps so as not to damage centring holes in pressure plate and centring pins of flywheel.

→ Fig.2    Checking ends of diaphragm spring

• ◆ Wear down to half diaphragm spring thickness is permitted

Note:

When performing repairs, always assign clutch pressure plate and clutch plate by way of engine code in line with Parts List.

→ Fig.3    Checking spring connection and riveted joints

• ‒ Check spring connection between pressure plate and cover for cracks and riveted joints for firm attachment.
• ‒ Replace clutches with damaged springs or loose riveted joints
  -arrows-.
