| Preparations before installing windscreen |
Note | If windscreen flange is damaged during removal, repair paintwork structure as specified in „Vehicle Paintwork“ manual and take anti-corrosion measures if necessary in accordance with instructions given in „Surface treatment/chemical materials“ binder. |
| If you are reusing an undamaged windscreen |
| –

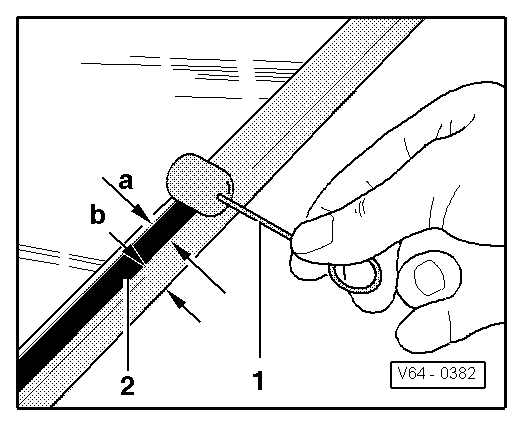

| When reusing an undamaged windscreen, cut back remaining adhesive sealant on windscreen glass and body flange until it is even using electric cutter -V.A.G 1561A- and scraper -V.A.G 1561/10-. Do not remove adhesive sealant completely. |
| –
| The remaining sealant is required as a base for better adhesion of the new adhesive sealant. |
WARNING | t
| Keep bonding surface clean and free from grease. |
| t
| Do not cut back bonding surface until shortly before installation. |
| t
| Do NOT apply primer to bonding surface and do NOT use cleaning solution. |
|
| If installing a new windscreen: |
| –
| Clean windscreen in bonding area using D 009 401 04 and apply glass/paint primer D 009 200 02. |
|
|
|
