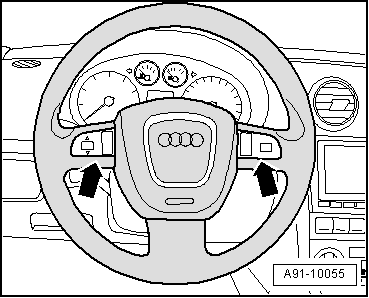

Multi-function steering wheel with thumbwheels
Multi-function steering wheel with thumbwheels
Multi-function steering wheel with thumbwheels
Removing
–
On vehicles fitted with telematics system, activate service mode for telephone/telematics control unit -J526-
→ Chapter
.
–
Disconnect battery earth cable
→ Electrical system; Rep. Gr.27
.
–
Heed safety regulations for airbag systems
→ General body repairs, interior; Rep. Gr.69
.
–
Remove driver's airbag
→ General body repairs, interior; Rep. Gr.69
.
–
Pull trim ring off steering wheel.
–

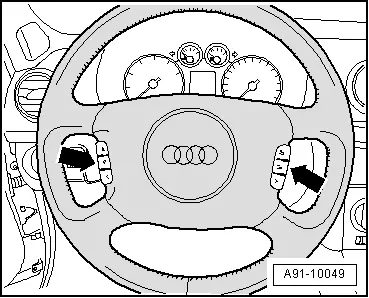

Push multi-function button
-2-
out of steering wheel in direction of arrow.
–
Turn button over.
–
Unplug connector
-2-
at multi-function button
-1-
.
–
Unscrew bolt
-arrow-
and remove tiptronic switch from behind steering wheel.
Installing
–
Installation is performed in reverse sequence.
Removal and installation procedures for the left-side switch are the same.
