A4 Mk2
| Avant |

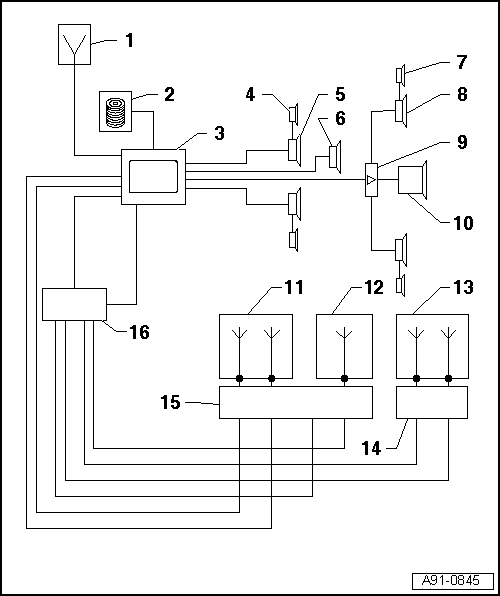

| 1 - | Navigation aerial -R50- roof aerial |
| 2 - | CD changer -R41- in glove box |
| 3 - | Operating electronics control unit for navigation -J402- in the centre console (top) |
| 4 - | Mid-range/treble loudspeaker, front left -R26-/mid-range/treble loudspeaker, front right -R27- in front doors (top) |
| 5 - | Bass loudspeaker, front left -R21- and bass loudspeaker, front right -R23- in front doors (bottom) |
| 6 - | Internal loudspeaker -R70- in dash panel (front centre) |
| 7 - | Mid-range/treble loudspeaker, rear left -R34-/mid-range/treble loudspeaker, rear right -R35- in rear doors (top) |
| 8 - | Bass loudspeaker, rear left -R15-/bass loudspeaker, rear right -R17- in rear doors (bottom) |
| 9 - | Amplifier -R12- behind luggage compartment side trim (right-side) |
| 10 - | Bass loudspeaker -R100- located behind luggage compartment side trim (right-side) |
| 11 - | Window aerials (rear left) for AM/FM1/TV1 |
| 12 - | Rear window aerials for FM2/TV2 |
| 13 - | Window aerials (rear right) for FM3/TV3/TV4 |
| 14 - | Right aerial module -R109- located behind luggage compartment side trim (right-side) |
| 15 - | Left aerial module -R108- behind side trim in luggage compartment (left-side) |
| 16 - | Aerial selection control unit -J515- behind luggage compartment side trim (left-side) |
