Heat shields for floor (rear) > < Heat shields

A4 Mk3

Heat shields for floor (front)

Heat shields for floor (front)

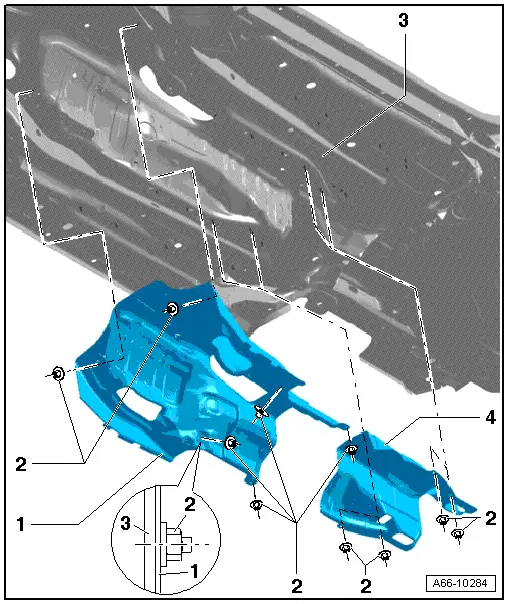

1 - Heat shield (front)
2 - Lock washer
q   When removing, unscrew; when installing, only press in lock washers.
3 - Floor panel
4 - Heat shield (centre)



Heat shields for floor (rear) > < Heat shields
