A4 Mk3
Body
General body repairs, exterior
Sliding roof / Sunroof (saloon)
Removing and installing sliding headliner
Removing and installing sliding headliner
Removing and installing sliding headliner
–
Sunroof panel removed
–

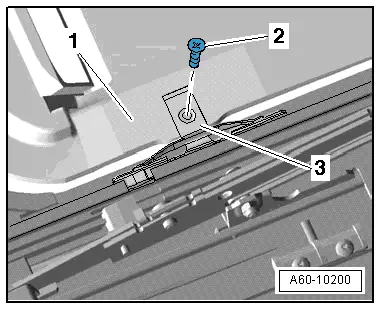

Unscrew bolt
-2-
for spring
-3-
.
–

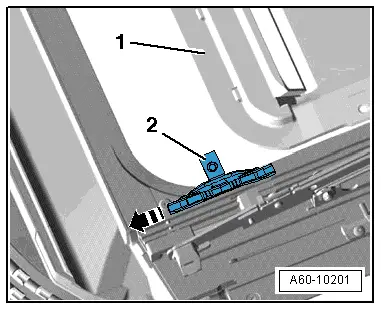

Slide headliner
-1-
back slightly and pull front spring out towards front.
–
Press out rear spring towards rear.
–
Lift out headliner.
Body
General body repairs, exterior
Sliding roof / Sunroof (saloon)
Removing and installing sliding headliner
