A4 Mk3

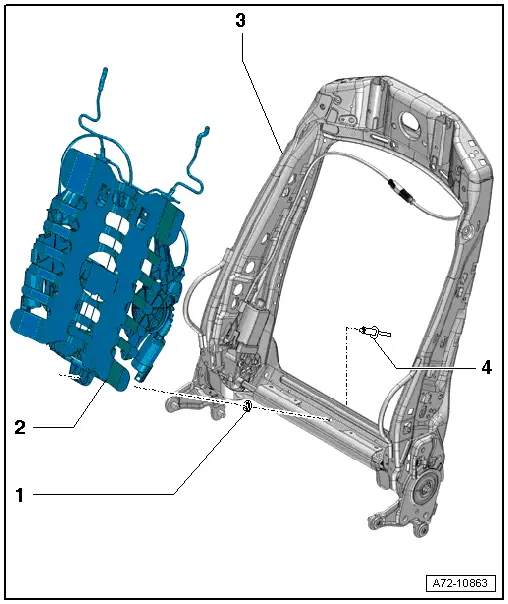

Exploded view of four-way lumbar support |
1 - | Plastic washer |
q | Fit between lumbar support bracket and backrest frame before riveting on four-way lumbar support |
2 - | Four-way lumbar support |
q | Driver side: Driver seat lumbar support longitudinal adjustment motor -V125- |
q | Passenger side: Front passenger seat lumbar support longitudinal adjustment motor -V126- |
q | Driver side: Driver seat lumbar support height adjustment motor -V129- |
q | Passenger side: Front passenger seat lumbar support height adjustment motor -V130- |
q | Removing and installing → Chapter |
3 - | Backrest frame |
4 - | Rivet |
