A4 Mk3

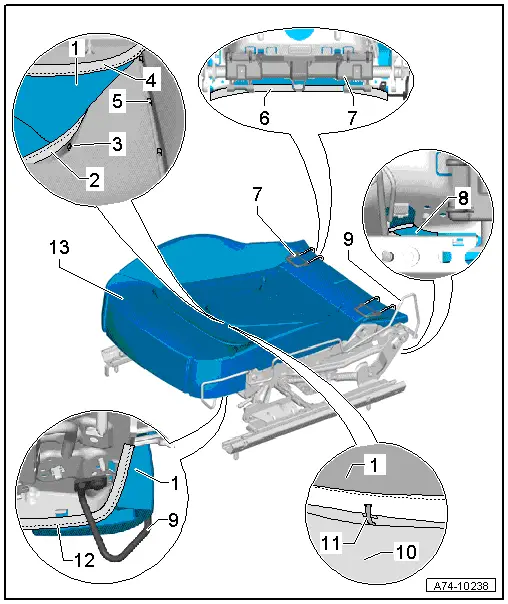

| Exploded view of seat cover and padding (seat pan without seat depth adjustment) |
Note| The exploded view relates to the standard seat (front, with manual or electric adjustment) and the convenience seat (front). |
| 1 - | Seat cover |
| 2 - | Contour wire |
| q | Inserted into pouch on seat cover |
| q | Fastened in clip -item 3- (only on seats with with fabric cover) |
| 3 - | Clip |
| q | Foam-fitted in padding (only on seats with fabric cover) |
| 4 - | Fastening strip |
| q | Fastened in clip -item 5- |
| q | Stitched to cover |
| 5 - | Clip |
| q | Foam-fitted in padding |
| 6 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover at upper seat pan frame (at rear) |
| 7 - | ISOFIX child seat anchor |
| q | Equipment version: Only on front passenger seat |
| q | Exploded view → Chapter |
| q | Removing and installing → Chapter |
| 8 - | Cover tab |
| q | With fastening strip |
| q | Fastening strip stitched to cover |
| q | For engaging cover at upper seat pan frame (at side) |
| 9 - | Retaining bracket |
| q | For trim (sill side) |
| Front standard seat (with manual adjustment) |
| q | Removing and installing → Chapter (retaining bracket not shown in illustration) |
| Front standard seat (with electric adjustment) |
| q | Removing and installing → Chapter |
| 10 - | Padding |
| q | With foam-fitted wire (only on seats with leather cover) |
| 11 - | Upholstery clip |
| q | Only on seats with leather cover |
| q | For attaching cover to padding |
| q | Always renew after removing |
| q | Re-attach at same location |
| 12 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover at upper seat pan frame (at front and side) |
| 13 - | Seat cover |
| q | With padding |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding and assembling → Chapter |
