Detaching seat cover from padding (super sports seat)
Detaching seat cover from padding (super sports seat)
Detaching seat cover from padding (super sports seat)
Special tools and workshop equipment required
t
Upholstery clip pliers -V.A.G 1634-
Removing
–
Remove cover with padding
→ Chapter
.
–

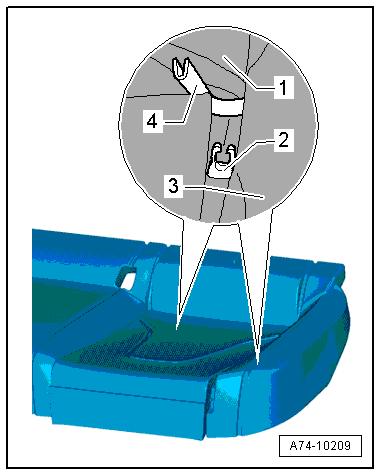

Detach cover
-1-
as far as possible from padding
-3-
.
–
Release fastening strip
-4-
from clips
-2-
.
–
Detach cover as far as possible from padding.
–
Use pliers
-4-
to pinch off upholstery clips
-3-
.
–
Detach cover
-1-
as far as possible from padding
-2-
.
–
Unclip fastening strip
-2-
of cover
-1-
from clips
-3-
of cover.
Installing
Installation is carried out in the reverse order; note the following:
–
Use upholstery clip pliers -V.A.G 1634- to install new upholstery clips.
