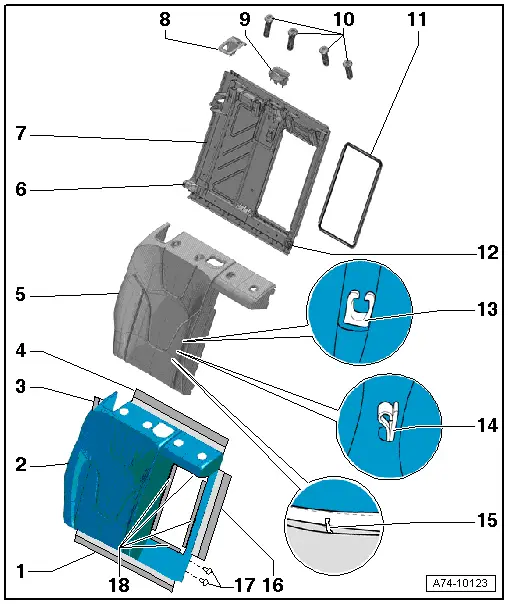

| Exploded view of cover and padding for split rear seat backrest (with load-through hatch) |
Note| For greater clarity, only the design of the 2/3 section (right-side) of the split backrest is shown in the illustration. The design of the 1/3 section (left-side) of the split backrest is similar. |
| 1 - | Piping |
| q | Stitched to cover |
| q | For engaging cover in backrest pan |
| 2 - | Seat cover |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding → Chapter |
| 3 - | Piping |
| q | Stitched to cover |
| q | For engaging cover in backrest pan |
| 4 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover in backrest pan |
| 5 - | Padding |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding → Chapter |
| 6 - | Outer bearing |
| 7 - | Backrest pan |
| 8 - | Trim |
| q | For locking mechanism |
| q | Removing and installing → Chapter |
| 9 - | Centre belt guide (rear) |
| q | Renew entire belt guide if damaged |
| q | Removing and installing → Chapter |
| 10 - | Head restraint guide |
| q | Removing and installing → Chapter |
| 11 - | Trim frame |
| q | Only on split backrest (2/3 section, right-side) with load-through hatch |
| q | Removing and installing → Chapter |
| 12 - | Inner bearing |
| 13 - | Clip |
| q | Foam-fitted in padding |
| 14 - | Clip |
| q | Foam-fitted in padding |
| q | Only on seats with fabric cover |
| 15 - | Upholstery clip |
| q | Only on seats with leather cover |
| q | For attaching cover to padding |
| q | Always renew after removing |
| q | Re-attach at same location |
| 16 - | Piping |
| q | Only on split backrest (2/3 section, right-side) with load-through hatch |
| q | Stitched to cover |
| q | For engaging cover in recess of load-through hatch |
| 17 - | Plug |
| q | For securing cover |
| q | 2x |
| 18 - | Piping |
| q | Only on split backrest (2/3 section, right-side) with load-through hatch |
| q | Stitched to cover |
| q | For engaging cover in recess of load-through hatch |
