Detaching seat cover from padding (seat bench without centre storage compartment) >
< Exploded view of seat cover and padding (seat bench without centre storage compartment)
A4 Mk3
Body
General body repairs, interior
Seat padding, covers
Covers and padding on rear seats
Removing and installing seat cover and padding (seat bench without centre storage compartment)
Removing and installing seat cover and padding (seat bench without centre storage compartment)
Removing and installing seat cover and padding (seat bench without centre storage compartment)

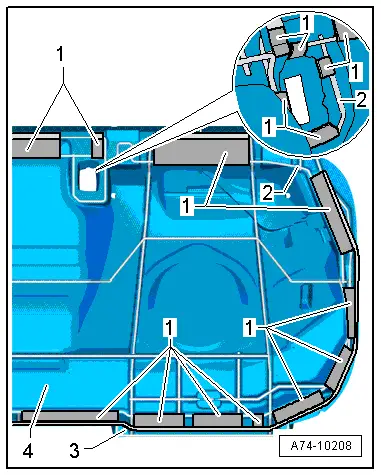

Removing
–
Remove seat bench
→ Chapter
.
–
Disengage piping
-1-
all around seat bench frame
-2-
.
–
Detach cover
-3-
with padding
-4-
from seat bench frame.
Installing
Install in reverse order of removal.
