Removing and installing retaining rail
Removing and installing retaining rail
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove rear cross panel trim → Chapter.
–  Remove fastening ring (rear) → Chapter.

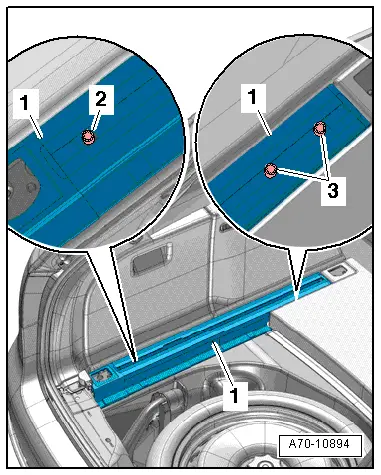

–  Unscrew bolts -2 and 3- and take out retaining rail -1-.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A70-10894
