A4 Mk3
Body
General body repairs, interior
Trim, noise insulation
Roof trim
Attaching roof reinforcement to body - equipment version with sliding sunroof
Attaching roof reinforcement to body - equipment version with sliding sunroof
Attaching roof reinforcement to body - equipment version with sliding sunroof
Special tools and workshop equipment required
t
Assembly adhesive
→ Electronic parts catalogue
Procedure
–
Remove moulded headliner
→ Chapter
.
–

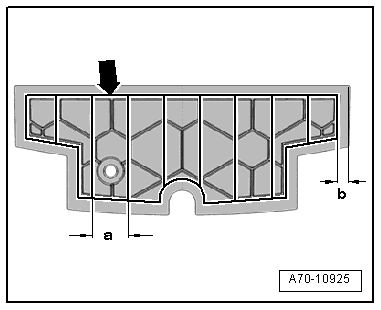

Apply adhesive beads
-arrow-
to roof reinforcement, as shown in illustration.
l
Distance between adhesive beads: Dimension
-a-
= approx. 90 mm
l
Distance between outer adhesive beads and edge of roof reinforcement: Dimension
-b-
= approx. 20 mm
–
Position roof reinforcement
-1-
on roof of body centrally between outer edges and at distance
-a-
from cross strut
-2-
of rear edge of roof.
l
Dimension
-a-
= 15 mm
–
Press roof reinforcement onto roof of body from inside.
–
