A4 Mk3

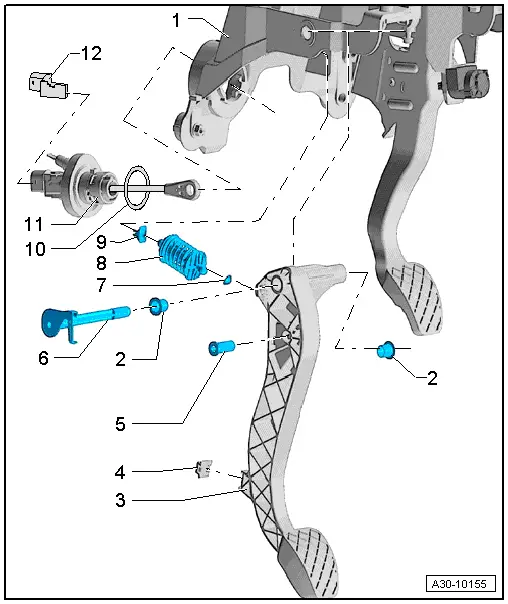

Exploded view - pedal cluster (LHD vehicles)
Exploded view - pedal cluster (LHD vehicles)
  Caution
Risk of accident.
The travel of the brake pedal must not be restricted with additional floor mats or the like.
  Note
t  Apply grease -G 000 450 02- to all bearings and contact surfaces.
t  Make sure that no brake fluid escapes into the footwell, the plenum chamber or onto the gearbox below. If this does happen, clean the affected area thoroughly.

1 - Mounting bracket
q   With brake pedal
q   Removing and installing → Rep. gr.46
2 - Bearing bush
3 - Clutch pedal
q   Removing and installing → Chapter
4 - Clutch pedal stop
5 - Locking pin
q   For clutch master cylinder
6 - Pivot pin for clutch pedal
7 - Bearing shell
q   Located in clutch pedal
8 - Over-centre spring
q   Black side points towards clutch pedal
q   Note different bearing positions in mounting bracket → Anchor
q   Removing and installing → Chapter
q   For correct version, refer to → Electronic parts catalogue
9 - Bearing shell
q   Note different bearing positions in mounting bracket → Anchor
10 - Seal
q   Renew
11 - Clutch master cylinder
q   Removing and installing → Chapter
12 - Clutch position sender -G476-
q   Clutch pedal switch -F36- and clutch pedal switch for engine start -F194- are integrated
q   Can only be renewed together with clutch master cylinder → Item
