Removing and installing clutch pedal
Removing and installing clutch pedal
Removing
–  Remove mounting bracket → Rep. gr.46.

–  Remove over-centre spring -2- → Chapter.
  A30-10156
–  Remove locking pin -1-.
–  Remove pivot pin -2- by lifting retaining tab -arrow A- and turning pivot pin in direction of -arrow B-.
–  Pull out pivot pin -2- and remove clutch pedal -3-.
  A30-10158
Installing
Installation is carried out in reverse sequence; note the following:
–  Apply grease -G 000 450 02- to all bearings and contact surfaces.

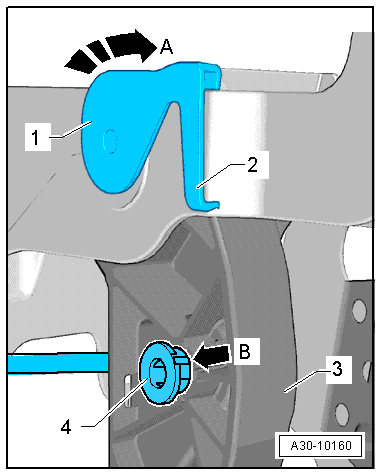

–  Install clutch pedal -3-, push in pivot pin -1- and lock in direction of -arrow A-. Bottom of retaining tab -2- should engage at pedal bracket.
–  Insert locking pin -4-. Shoulder on pin -arrow B- must be introduced into groove on clutch pedal.
–  Install over-centre spring → Anchor.
–  Install mounting bracket → Brake system; Rep. gr.46.
  A30-10160
