Removing and installing gearbox support with gearbox mounting
Removing and installing gearbox support with gearbox mounting
Removing and installing gearbox support with gearbox mounting
Removing
–
Remove tunnel cross member
→ Chapter
.
–

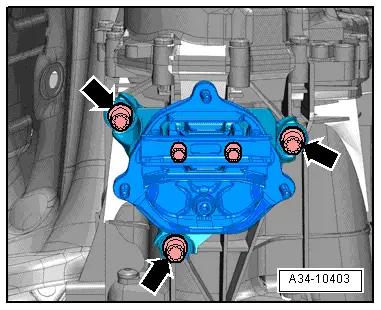

Remove bolts
-arrows-
and detach gearbox support from gearbox together with gearbox mounting.
Installing
Installation is carried out in reverse sequence; note the following:
l
Tightening torques
→ Chapter
–
Secure gearbox support to gearbox together with gearbox mounting
-arrows-
.
–
Install tunnel cross member
→ Chapter
.
