Transporting gearbox
Transporting gearbox
Special tools and workshop equipment required

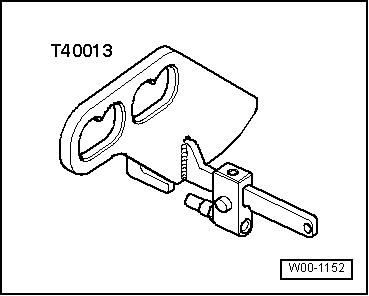

t  Lifting aid -T40013-
  W00-1152
t  Workshop hoist -VAS 6100-
Procedure
  W00-1214
–  Insert lifting aid -T40013- in lifting eye on gearbox and secure.
–  Engage hook of workshop hoist -VAS 6100- in 3rd notch -arrow- on lifting aid.
–  Lift gearbox with workshop hoist -VAS 6100- and lifting aid -T40013-.
  A34-11001
