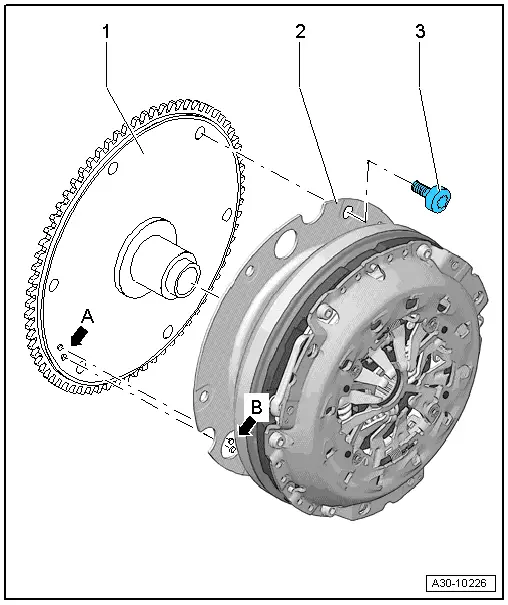

Exploded view - clutch module |
Note
Servicing clutch module -2- → Servicing 6-speed manual gearbox 0B4, four-wheel drive; Rep. gr.30 |
A - | Locating pins |
q | Not fitted in all vehicles |
q | When clutch module -2- is bolted onto drive plate -1-, locating pins -A- (if provided) must engage in locating holes -B- |
B - | Locating hole |
q | When clutch module -2- is bolted onto drive plate -1-, locating pins -A- (if provided) must engage in locating holes -B- |
Caution
|
1 - | Drive plate |
q | 4-cylinder engine: 3 holes with threaded sleeves |
q | 6-cylinder or 8-cylinder engine: 6 holes with threaded sleeves |
q | With needle bearing |
q | Removing and installing → Engine, mechanics; Rep. gr.13 |
2 - | Clutch module |
q | With flange for drive plate |
q | Components: dual-mass flywheel, clutch plate and clutch pressure plate |
q | Removing and installing → Servicing 6-speed manual gearbox 0B4, four-wheel drive; Rep. gr.30 |
q | Servicing → Servicing 6-speed manual gearbox 0B4, four-wheel drive; Rep. gr.30 |
3 - | Bolt |
q | 60 Nm |
q | Secures dual-mass flywheel to drive plate |
q | 6x |
q | Always renew |
q | Follow correct tightening sequence → Chapter |
