Exploded view - selector mechanism >
< Removing and installing gear knob with gear lever boot
A4 Mk3
Power transmission
6-speed manual gearbox 0B4, four-wheel drive
Gearbox mechanics,operation, construction,diff. / Servicing selector mechanism
Removing and installing noise insulation
Removing and installing noise insulation
Removing and installing noise insulation
Removing
–
Switch off ignition.
–
Remove gear knob with gear lever boot
→ Chapter
.
–
Remove multimedia system operating unit -E380-
→ Rep. gr.91
.
–

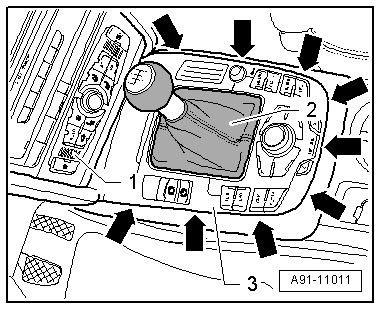

Release retaining tabs
-1-
in direction of
-arrow-
. At the same time, lift rear end of noise insulation slightly.
–
Pull noise insulation out of tabs
-3-
.
–
Pull boot
-2-
off gear lever in direction of
-arrow-
.
Installing
–
Insert noise insulation into tabs
-1-
and press down until retaining tabs
-2-
engage.
–

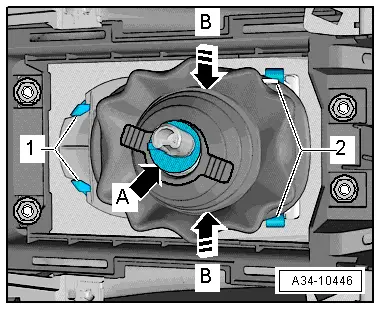

Pull boot over gear lever and into rounded groove
-arrow A-
.
–
Press support ring in boot over gear lever bearing as far as stop in direction of
-arrow B-
.
The remaining installation steps are carried out in reverse sequence; note the following:
–
Install multimedia system operating unit -E380-
→ Rep. gr.91
.
–
Install gear knob with gear lever boot
→ Chapter
.
