Renewing mounting bracket and ball bearing for flange shaft (left-side)
Renewing mounting bracket and ball bearing for flange shaft (left-side)
Special tools and workshop equipment required
t
Thrust plate -VW 401-
t
Thrust plate -VW 402-
t

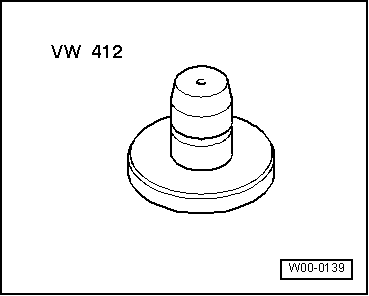

Press tool -VW 412-
t

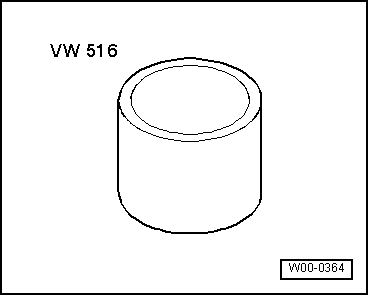

Tube -VW 516-
–
Remove flange shaft (left-side)
→ Chapter
.
–

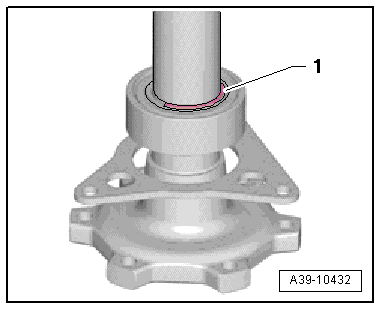

Remove circlip
-1-
from flange shaft.
–

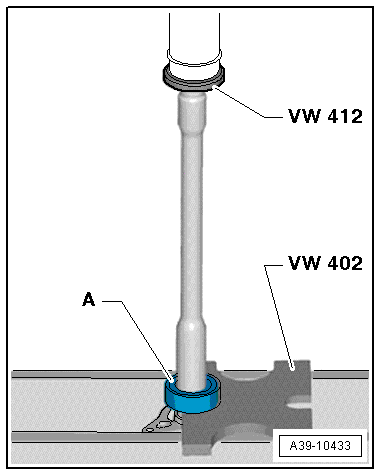

Press ball bearing
-A-
off flange shaft.
–
Fit new mounting bracket
-1-
.
l
Installation position: side with lettering faces towards flange for drive shaft.
–
Fit new ball bearing
-2-
.
–
With mounting bracket
-B-
installed, press on ball bearing
-A-
as far as stop.
–
Fit circlip
-1-
in annular groove on flange shaft.
