A4 Mk3

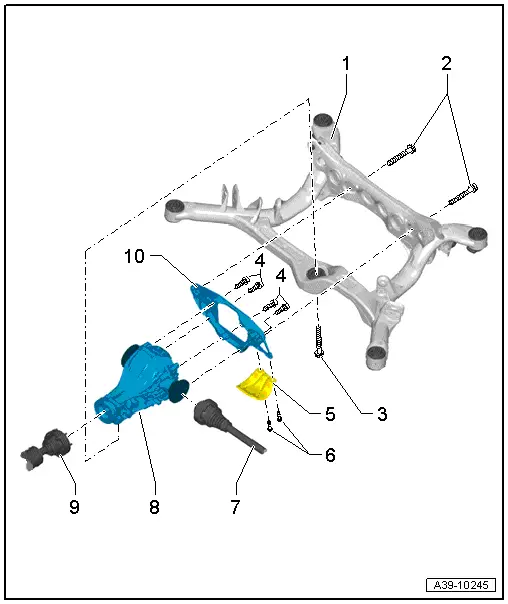

Exploded view - rear final drive |
1 - | Subframe |
q | Removing and installing → Rep. Gr.42 |
2 - | Bolt |
q | 95 Nm |
3 - | Bolt |
q | 55 Nm |
4 - | Bolt |
q | 55 Nm |
5 - | Heat shield |
6 - | Bolt |
q | 20 Nm |
7 - | Drive shaft |
q | Removing and installing → Rep. Gr.42 |
8 - | Rear final drive |
q | Removing and installing → Chapter |
q | Mounting on assembly stand → Fig. |
9 - | Propshaft |
q | Removing and installing → Chapter and → Chapter |
q | Detaching and attaching propshaft at rear final drive → Chapter |
10 - | Cross member |
|
