Renewing input shaft oil seal
Renewing input shaft oil seal
Renewing input shaft oil seal
Special tools and workshop equipment required
t

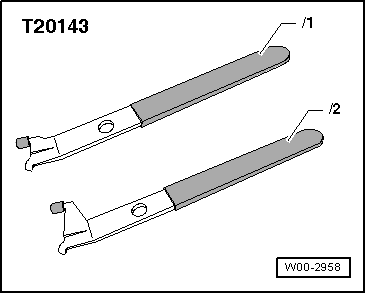

Oil seal extractor lever -T20143/1-
t
Thrust piece -T40174-
t
Sealing grease -G 052 128 A1-
l
Gearbox removed
→ 6-speed manual gearbox 0B3, front-wheel drive; Rep. Gr.34
.
–
Remove clutch module
→ Chapter
.
–
Prise out input shaft oil seal.
–
Lightly lubricate the outer periphery of the new oil seal.
–
Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.
–
Drive in new oil seal onto stop (take care to keep seal straight).
–
Install clutch module
→ Anchor
.
