A4 Mk3

Securing engine to assembly stand

Securing engine to assembly stand

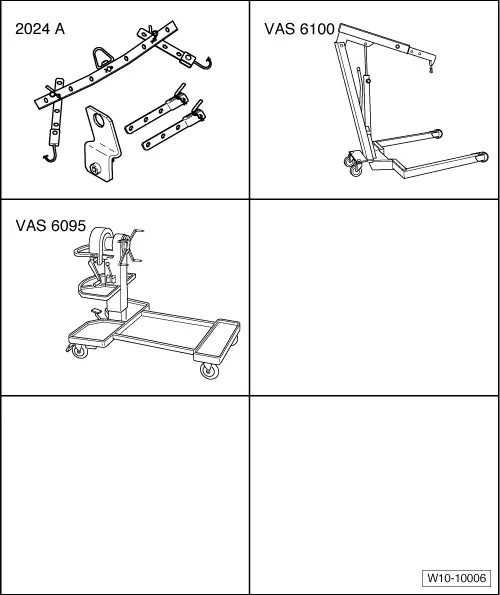

Special tools and workshop equipment required
t  Lifting tackle -2024 A-
t  Workshop hoist -VAS 6100-
t  Engine and gearbox support -VAS 6095-

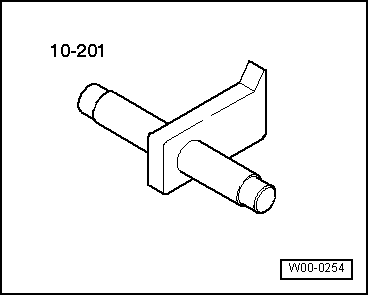

Counterhold tool -10 - 201-
  W00-0254
Procedure

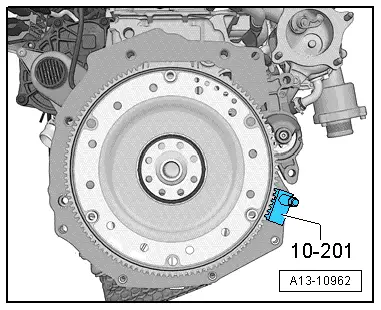

–  Insert counterhold tool -10 - 201- to slacken bolts.
  Caution
Take care not to damage outer surface of bearing flange on drive plate.
Use a multi-point socket bit with a length of at least 40 mm to slacken and tighten the drive plate bolts.
–  Remove bolts and take off drive plate.
  WARNING
Accident risk from loose components of lifting tackle.
The support hooks and retaining pins on the lifting tackle must be secured with locking pins -arrows-.
  A13-10962
–  Engage lifting tackle -2024 A- on engine and workshop hoist -VAS 6100-.
  Note
To adjust to the centre of gravity of the assembly, the perforated rails of the support hooks must be positioned as shown.
–  Secure engine to engine and gearbox support -VAS 6095- when performing assembly work.
  A10-11551
