Removing and installing needle bearing in drive plate - vehicles with manual gearbox
Removing and installing needle bearing in drive plate - vehicles with manual gearbox
Removing and installing needle bearing in drive plate - vehicles with manual gearbox
Special tools and workshop equipment required
t
Tube -VW 418 A-
t
Tube -VW 421-
t
Support -40 - 103-
Procedure
l
Gearbox removed.
–
Remove drive plate
→ Chapter
.
–

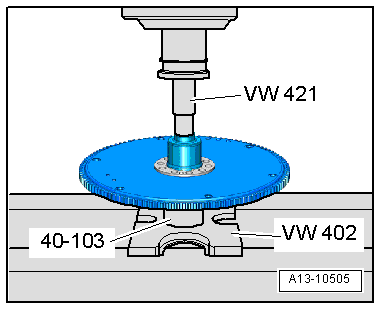

Place support -40 - 103- under drive plate when pressing out and pressing in needle bearing.
–
Use tube -VW 421- and workshop press and press out needle bearing.
l
Smaller diameter of tube -VW 421- faces drive plate.
–
Carefully press in needle bearing as far as stop, using tube -VW 418 A- and workshop press.
l
Installation position: closed side of needle bearing faces engine.
–
Install drive plate
→ Chapter
.
