A4 Mk3
Power unit
4-cylinder direct petrol injection engine (1.8 ltr., 2.0 ltr. 4-valve turbo), mechanics
Engine cylinder head, valve gear
Cylinder head
Cylinder head
Cylinder head
→ Chapter „Cylinder head (1.8 ltr. engine) - exploded view“
→ Chapter „Removing and installing cylinder head (1.8 ltr. engine)“
→ Chapter „Cylinder head - exploded view (2.0 ltr. engine with assembly clearance feature)“
→ Chapter „Removing and installing cylinder head (2.0 ltr. engine with assembly clearance feature)“
→ Chapter „Cylinder head - exploded view (2.0 ltr. engine without assembly clearance feature)“
→ Chapter „Removing and installing cylinder head (2.0 ltr. engine without assembly clearance feature)“
Assembly clearance feature

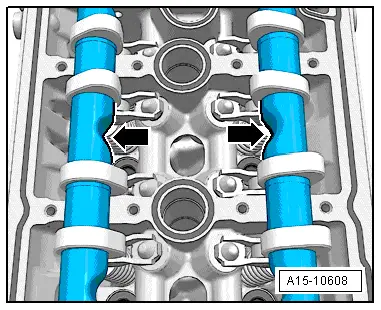

Camshafts with assembly clearance feature have tool recesses at the points marked with
-arrows-
.
Camshafts with no assembly clearance feature do not have these recesses.
To check this feature, turn sealing plugs
-arrows-
anti-clockwise 90° in direction indicated by
-arrow-
and remove.
