Pistons and conrods - exploded view

Pistons and conrods - exploded view
1 - Piston rings
q   Offset gaps by 120°
q   Use piston ring pliers to remove and install
q   Inscription „TOP“ faces towards piston crown
q   Checking ring gap → Fig.
q   Checking ring-to-groove clearance → Fig.
2 - Piston
q   With combustion chamber
q   Mark installation position and cylinder number
q   Installation position and allocation of piston/cylinder → Fig.
q   Arrow on piston crown points to pulley end
q   Install using piston ring clamp
q   If cracking is visible on piston skirt, renew piston
q   Checking piston projection at TDC → Chapter
3 - Piston pin
q   If difficult to remove, heat piston to 60 °C
q   Remove and install using drift -VW 222 A-
4 - Circlip
5 - Conrod
q   Mark cylinder allocation -A- with coloured pen
q   Installation position: Marking -B- faces towards pulley end
q   With industrially cracked conrod bearing cap
6 - Bearing shell
q   Note installation position
q   Note version: Upper bearing shell (towards piston) made of a more wear resistant material. Identification: Black line on bearing surface in area of joint
q   Do not interchange used bearing shells
q   Insert bearing shells centrally
q   Check that it is securely seated
q   Axial clearance: wear limit: 0.37 mm
q   Check radial clearance with Plastigage: Wear limit: 0.08 mm. Do not rotate crankshaft when checking radial clearance
7 - Cylinder block
q   Checking cylinder bore → Fig.
q   Piston and cylinder dimensions → Chapter
8 - Conrod bearing cap
q   Note installation position
q   Due to the cracking method used to separate the bearing cap from the conrod in manufacture, the cap only fits in one position and only on the appropriate conrod
9 - Oil spray jet
q   For piston cooling
10 - Bolt for oil spray jet
q   25 Nm
q   Insert without sealant
11 - Conrod bolt
q   30 Nm + 90°
q   Renew
q   Lubricate threads and contact surface
q   Use old bolts when measuring radial clearance


Oil spray jet and pressure relief valve
  A13-0687

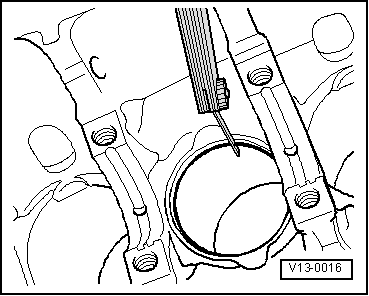

Checking piston ring gap
Special tools and workshop equipment required
t  Feeler gauge
–  Insert piston ring at right angles from above and push down into cylinder approx. 15 mm from bottom end of cylinder.
  V13-0016
Piston ring
Dimensions in mm
NewWear limit
1st compression ring0.20...0.401.0
2nd compression ring0.20...0.401.0
Oil scraper ring0.25...0.501.0

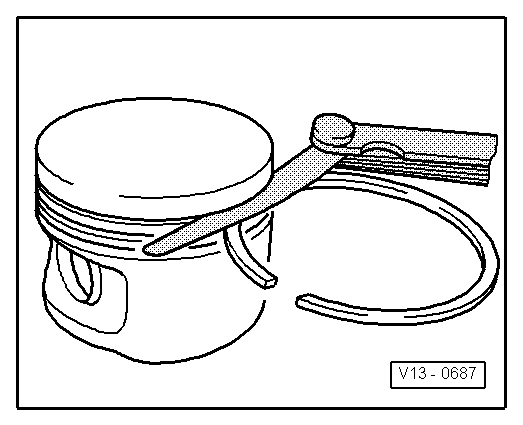

Checking ring-to-groove clearance
Special tools and workshop equipment required
t  Feeler gauge
–  Clean groove in piston before checking clearance.
  V13-0687
Piston ring
Dimensions in mm
NewWear limit
1st compression ring0.06...0.090.25
2nd compression ring0.05...0.080.25
Oil scraper ring0.03...0.060.15

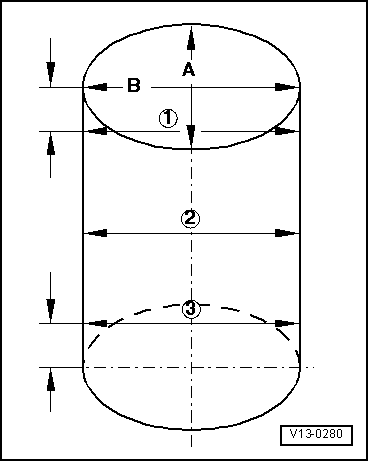

Checking cylinder bore
Special tools and workshop equipment required
t  Cylinder gauge, 50 ... 100 mm
–  Make measurements at three positions diagonally in transverse direction -A- and in longitudinal direction -B-. Difference between actual and nominal diameter: not more than 0.10 mm.
  Note
Do not measure the cylinder bores when the cylinder block is mounted on a repair stand with engine and gearbox support -VW 540-, as incorrect measurements would then be possible.
  V13-0280
Piston installation position and piston/cylinder allocation
The arrow faces towards cylinder 1 -arrows-.
  N13-10005
