4-cylinder TDI engine (2.0 ltr. 4-valve common rail - generation II), mechanics
Engine cooling
Radiator and radiator fan
Removing and installing radiator fanV7
Removing and installing radiator fanV7
Removing and installing radiator fan -V7-
Removing
Note
Fit all cable ties in the original positions when installing.
–
A4: remove radiator with radiator cowl
→ Chapter
.
–
A5: remove radiator cowl
→ Chapter
.
–

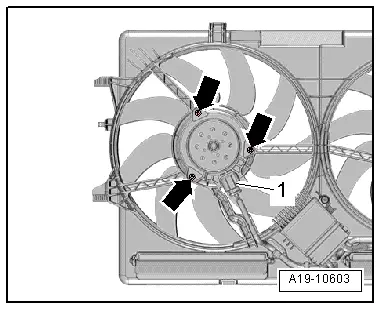

Unplug electrical connector
-1-
.
–
Unscrew bolts
-arrows-
and remove radiator fan -V7-.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torques
→ Chapter „Radiator and radiator fan - exploded view“
–
A4: install radiator with radiator cowl
→ Chapter
.
–
A5: install radiator cowl
→ Chapter
.
