A4 Mk3
Power unit
4-cylinder TDI engine (2.0 ltr. 4-valve common rail - generation II), mechanics
Exhaust system
Exhaust manifold
Removing and installing exhaust manifold
Removing and installing exhaust manifold
Removing and installing exhaust manifold
Removing
–
Remove turbocharger
→ Chapter
.
–
Unplug electrical connector
-3-
for pressure differential sender -G505-.
–
Remove bolt
-2-
and move hoses
-1-
clear at bracket.
–
Move pressure differential sender -G505- to rear.
–

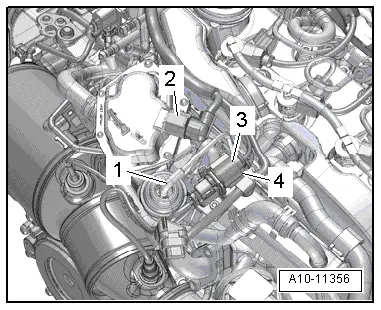

Detach electrical connectors from bracket and unplug.
3 -
For Lambda probe -G39-
4 -
For exhaust gas temperature sender 3 -G495-
–
Move particulate filter to rear.
Note
Disregard
-items 1, 2-
.
–
Remove bolt
-1-
at retaining clamp for oil supply line.
Note
Disregard
-item 2-
.
–

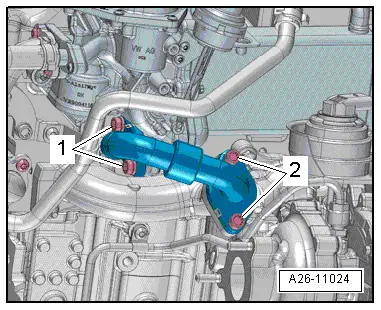

Remove bolts
-1, 2-
and detach exhaust gas recirculation pipe.
–
Remove nuts
-arrows-
and detach heat shield.
–

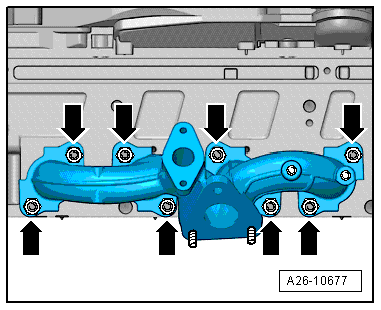

Remove nuts
-arrows-
.
Caution
Risk of damage to oil supply line.
Do not attempt to bend oil supply line to a different shape.
–
Detach exhaust manifold.
Installing
Installation is carried out in the reverse order; note the following:
Tightening torques
l
→ Chapter „Exhaust manifold - exploded view“
.
l
→ Chapter „Exhaust gas recirculation system - exploded view“
.
Note
Renew gaskets and nuts.
–
Install pressure differential sender -G505-
→ Rep. gr.23
.
–
Install turbocharger
→ Chapter
.
–
Electrical connections and routing
→ Current flow diagrams, Electrical fault finding and Fitting locations
.
Power unit
4-cylinder TDI engine (2.0 ltr. 4-valve common rail - generation II), mechanics
Exhaust system
Exhaust manifold
Removing and installing exhaust manifold
