Renewing crankshaft oil seal (gearbox end)
Renewing crankshaft oil seal (gearbox end)
Renewing crankshaft oil seal (gearbox end)
Special tools and workshop equipment required
t

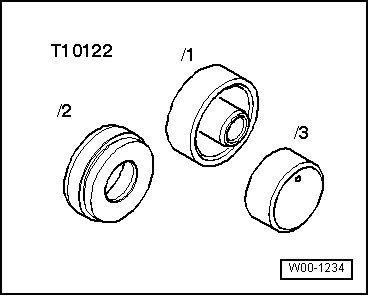

Fitting tool -T10122-
t

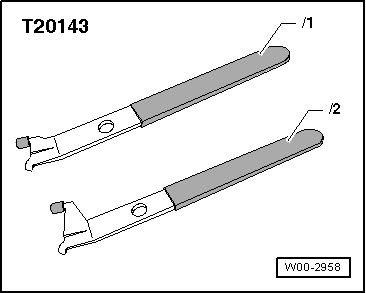

Extractor tool -T20143/2-
Procedure
l
Gearbox removed.
–
Remove drive plate
→ Chapter
.
–
Pry out oil seal using extractor tool -T20143/2-.
–
Clean contact surface and sealing surface.
–

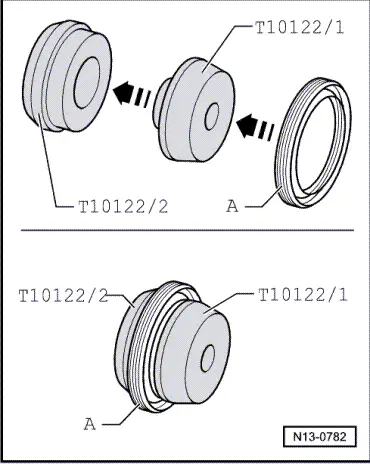

Fit assembly aid -T10122/1- onto assembly sleeve -T10122/2- and slide oil seal
-A-
onto assembly sleeve.
–
Detach assembly aid.
–
Fit assembly sleeve -T10122/2- with oil seal
-1-
onto crankshaft.
–

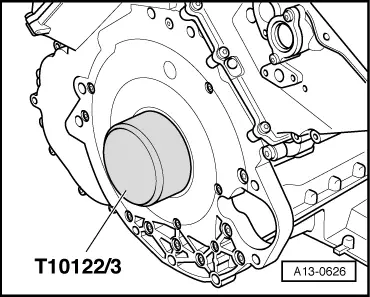

Press in oil seal uniformly until flush all round using thrust piece -T10122/3-.
–
Install drive plate
→ Chapter
.
