Removing and installing thermostat
Removing and installing thermostat
Removing and installing thermostat
Removing
–
Drain coolant
→ Chapter
.
–
Remove supercharger
→ Chapter
.
–
Remove front coolant pipe
→ Chapter
.
Note
Place a cloth underneath to catch any escaping coolant.
–

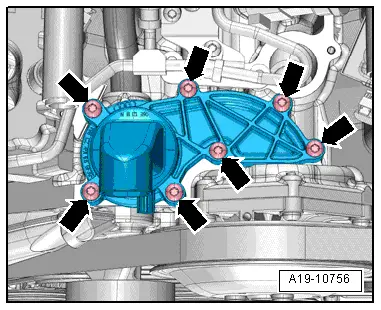

Remove bolts
-arrows-
.
–
Detach coolant thermostat with hose connection.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torques
→ Chapter „Coolant pump, thermostat and connection - exploded view“
Note
Renew gasket.
–
Install coolant pipe (front)
→ Chapter
.
–
Install supercharger
→ Chapter
.
–
Fill up with coolant
→ Anchor
.
