Removing and installing radiator fans V7/V177 > < Removing and installing radiator cowl - Audi A5

A4 Mk3

Removing and installing radiator fan control unit
Removing and installing radiator fan control unit
  Note
The following procedure refers to the radiator fan with separate radiator fan control unit.

Removing
–  Remove front noise insulation -1- → Rep. gr.66.
  A10-11071
–  Take electrical connector -1- for radiator fan out of bracket and unplug connector (push retainer to the rear -arrow- and press down release catch).
–  Move electrical wiring harness going to radiator fan control unit clear.
  A19-10591

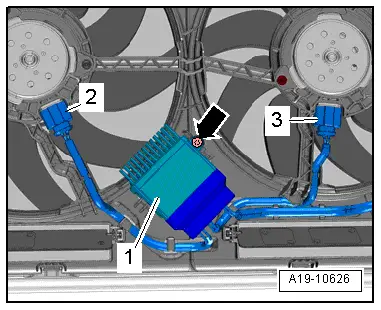

–  Unplug electrical connectors -2- and -3-.
–  Unscrew bolt -arrow- and remove radiator fan control unit -1-.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Fig. „„Radiator fan control unit - tightening torque““
–  Install front noise insulation → Rep. gr.66.
  A19-10626
