Removing and installing charge pressure sender -G31-
Removing
–
Remove front left wheel.
–
Remove front left wheel housing liner
→ Rep. gr.66
.
–

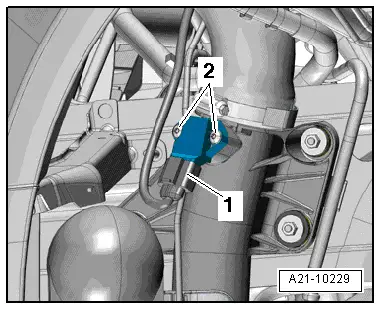

Unplug electrical connector
-1-
at charge pressure sender -G31-.
–
Remove bolts
-2-
and pull charge pressure sender -G31- out of air pipe.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torque
→ Chapter „Charge air cooler - exploded view“
Note
Fit new O-ring.
–
Install front left wheel housing liner
→ Rep. gr.66
.
–
Fit front wheel
→ Rep. gr.44
.
