A4 Mk3

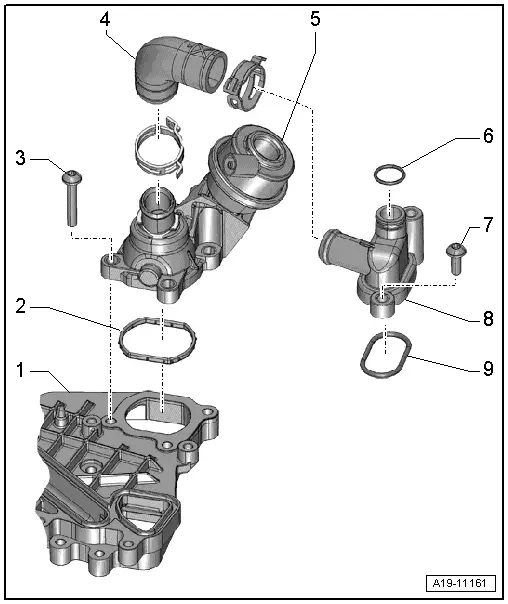

| Coolant shut-off valve - exploded view |
| 1 - | Mounting plate |
| q | For engine oil cooler and coolant shut-off valve |
| 2 - | Gasket |
| q | Renew |
| 3 - | Bolt |
| q | 9 Nm |
| 4 - | Coolant hose |
| 5 - | Coolant shut-off valve |
| q | Removing and installing → Chapter |
| 6 - | O-ring |
| q | Renew |
| 7 - | Bolt |
| q | 9 Nm |
| 8 - | Coolant hose/pipe connection |
| 9 - | Seal |
| q | Renew |
