A4 Mk3
Power unit
6-cylinder TDI engine (3.0 ltr. 4-valve common rail - generation II), mechanics
Exhaust system / Silencers
Renewing tailpipe
Renewing tailpipe
Renewing tailpipe
Special tools and workshop equipment required
t

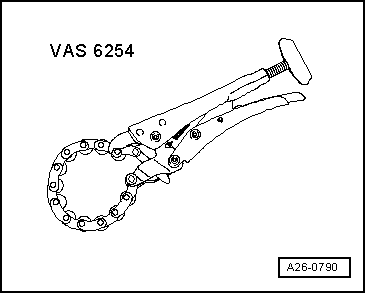

Chain pipe cutter -VAS 6254-
Procedure
l
Tightening torque
→ Chapter „Silencers - exploded view“
–

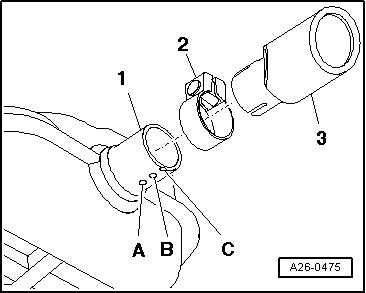

Cut through tailpipe
-1-
with chain-type pipe cutter -VAS 6254- at the position marked
-C-
.
–
Push new tailpipe
-3-
onto tailpipe as far as marking
-A-
. Slot on tailpipe should align with marking
-B-
.
–
Tighten nut for clamp
-2-
.
