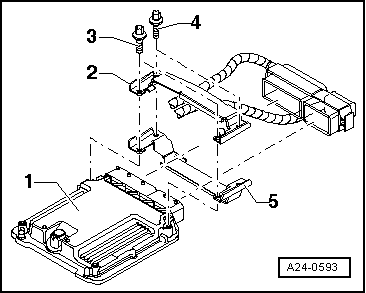

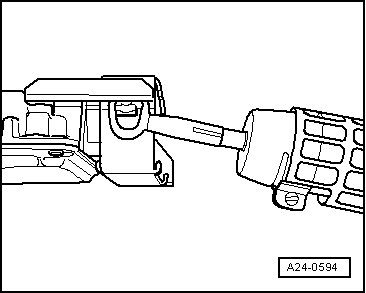

| The engine control unit -1- is bolted to the protective housing -5-. To make it more difficult to unscrew the shear bolts -4- for locking plate -2-, their threads have been coated with locking fluid. |
t
| The metal casing has to be removed before the connectors can be unplugged from the engine control unit (e.g. to connect the test box or renew the engine control unit). |
–
| When renewing engine control unit, select diagnosis object „Replace engine control unit“ in „Guided Functions“. |
–
| Switch off ignition and remove ignition key. |
|
|
|
