Fuel tank with attached components - rest-of-world vehicles with four-wheel drive > < Checking fuel gauge senderG

A4 Mk3

Removing and installing fuel gauge senderG
Removing and installing fuel gauge sender -G-
Removing
–  Observe safety precautions → Chapter.
–  Observe rules for cleanliness → Chapter.
  Note
Fit cable tie in the original position when installing.
–  Remove fuel delivery unit → Chapter.

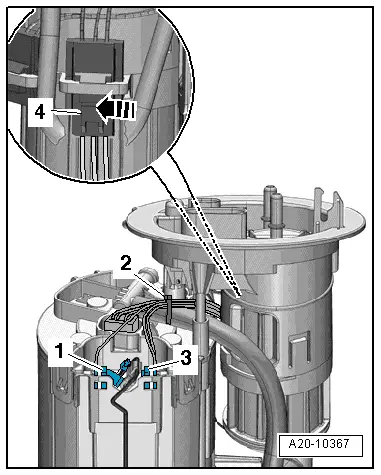

–  Press release tab -arrow- and unplug electrical connector -4-.
–  Cut through cable tie -2- and move electrical connector clear.
–  Release retaining tabs -1- and -3- and lift out fuel gauge sender -G-.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert fuel gauge sender -G- into guides on fuel delivery unit and press downwards until it clicks into place.
–  Plug in electrical connector and make sure it is correctly engaged.
–  Install fuel delivery unit → Anchor; observe notes on procedure for connecting battery.
